1.This new Egg Tray Making Machine have features of high efficiency, low maintenance and energy saving during the ten year practice.
2.The pulp molding system adopts to all kinds of waste paper to produce high quality molded fiber products. Such as egg boxes, apple trays, meat portion trays, vegetable portion trays,fruit portion trays, strawberry punnets, kidney trays, wine packs, can trays, seed cubes, ect.
3.The output try is thick at the bottom, and thin in the surface, which can save much paper pulp and energy.
Knowledge Note
1: pulp making system :
Put the waster paper in to the hydrapulper , the paper and water will mix in hydrapulper ,then go to the refiner machine ,refiner machine make the pulp more small and uniform ,then the pulp pump absorb the pulp to the pulp pool .after the second mix in the pulp pool ,the pulp will go to the form machine pulp tank .
2:forming system :

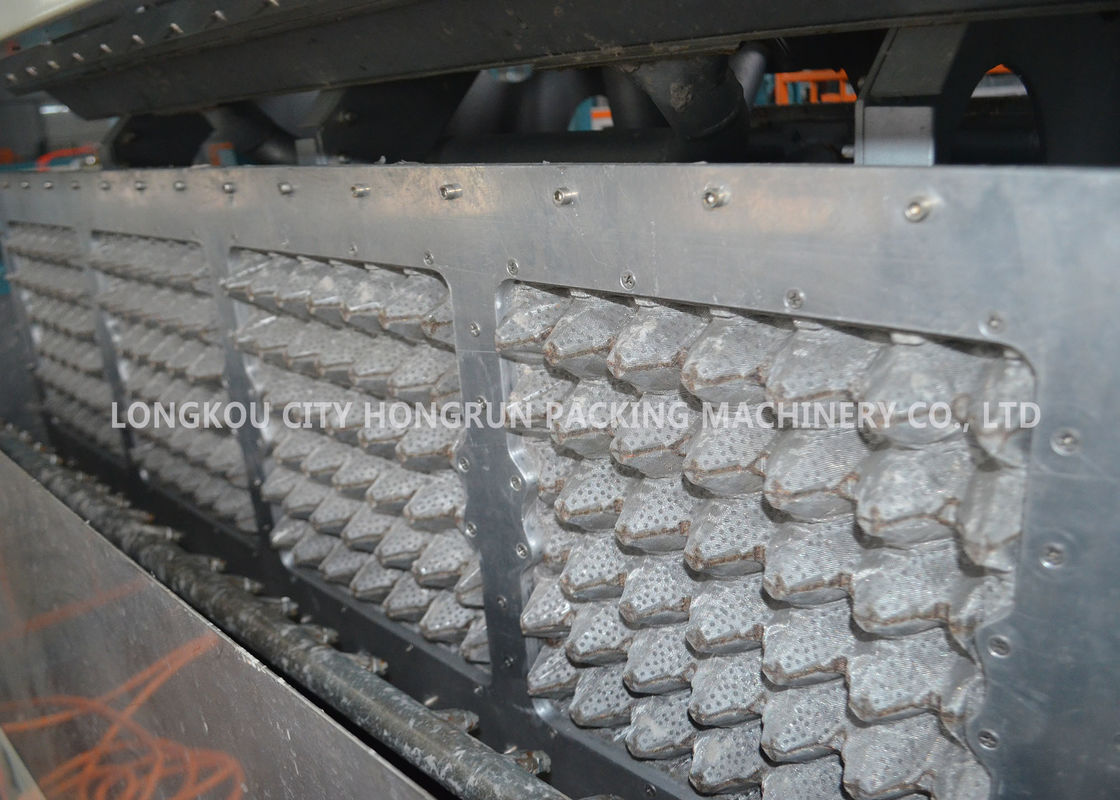

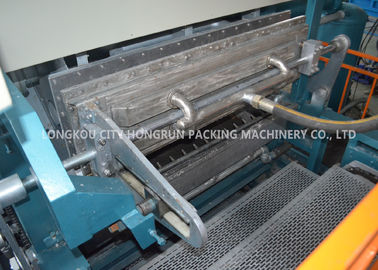

The vacuum pump will give the vacuum to make the forming mould absorb the pulp from the pulp tank.there is a PLC control the pulp absorb time ,the finished product will be shaped on the forming mould ,then the transfer mould transfer the products to the drying line ,the air compressor will give the air to blow the products ,then the products will be fall from the mould .the products delivery to the drying line automatic .the water will be go back to the water pool .will be recycle .
3: drying system ( can use gas ,dissel ,coal on the drying line )

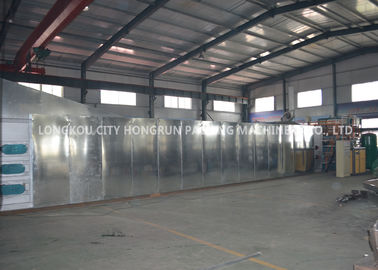

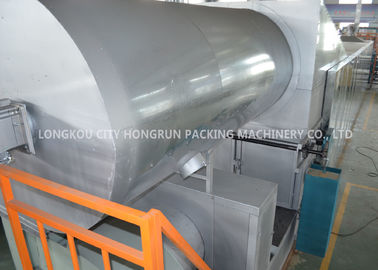

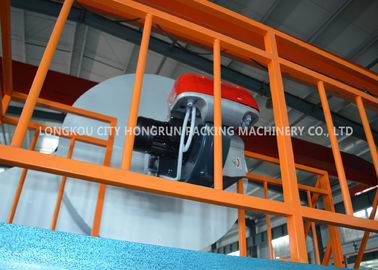

There are burners and blowers on the two sides of the drying line .burner give the hot power and the blower increase it ,there will be hot air mouth in the drying line also blow the hot air .the drying line is protect by the insulation board .the degree can reach 200 degree.
4:automatic counting
After drying line ,the egg trays go to the automatic counting and stacking system ,you can pre-set the quantity of one pile ,such as 100pcs or 200pcs ,.when the quantity ok ,will be alarm .the products stacked at the same time .you can packaged them directly .
Technology Parameters
| Item |
Information |
Notes |
| Output Range |
4000pcs/h |
30 packed egg tray(60~80g) |
| Workshop recommendation |
>=525m2 |
Length>=35m;width>=15m;height>=6m;
(It could be adjusted according to the user's existing workshop)
|
| Type of Material |
Waster paper |
News paper/Carton /Paper box/Books/
Corrugated paper etc.
|
| Material consumption |
250~280kg/h |
30 packed egg tray (65~70g) |
| Water consumption |
650-1000kg/h |
30 packed egg tray (65~70g) |
| Electricity consumption |
110kw |
Full throttle operation |
|
Fuel consumption
(approximately)
|
LPG 25~32M3/h |
Choose one from the three types of fuel |
| natural gas 75~95 M3/h |
| diesel 60~80kg/h |
| Operator Required |
4~6 people/shift |
24 hours ,3 shift |
| Container requirement for Transport |
4 of 40’HQ container |
Whole production line |
Features:
1. We already develop automatic counting stacking and packing system etc.
2. FC series pulp moulding machine features of high efficiency, low maintenance and energy saving .
3. The pulp molding system can use all kinds of waste paper to produce high quality molded fiber products .
4. With different moulds it can produce egg trays, vegetable trays, fruit trays, can trays, seedling tray, etc.
Finished Products
This production line mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products.
There are many types and production capacity can be supply .Such as 800-1000pcs / 2000pcs / 2500pcs / 3000pcs / 4000pcs /4500pcs /5500pcs per hour . Just tell me what capacity you want , will be design best production scheme for you. we will
supply all-round service for inquirying, pricing, technique teaching, installation and maintenance.
Pre-Sale Service
(1). Market Consulting and Positioning
(2). Workshop Designing
(3). Product Designing
(4). Layout Designing
(5). Equipment Choosing
(6). Machine Making
(7). Mold Designing and Making
(8). Machine Installation
(9). Machine Upgrading and Modification
(10).Spare Parts Supplying
Your Concerned Question
| Q1: What is the Warranty for the machine? |
|
A1: For the machine,we have 1 years warranty.If any quality problems occurred under normal condition in this period ,we will take on the cost of maintenance and replacement and other related cost.
|
| Q2: How to operate and maintain the machine? |
| A2: First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service |
| Q3: How to get raw material or auxiliary material for the machine? |
| A3: Our company has more than 20 years experience in this industry, we have accumulated much more contact information of upstream & downstream firms, in the field of raw material, auxiliary material and package of tissue. We belive our professional team can give you best solution for your production configuration. |
| Q4: How to find the matching accessories or wearing parts of the machine? |
| A4: Actually, we will replace it for free when wear out in warranty period; Out of the warranty time, you can buy it from us with favorable price or from other place near you, most of our accessories and wearing parts are standard for you. |
